Features
- Wide range wireless control
- Easy plug & play
- Monitoring pumping operation condition
- Monitoring the fluid level in suction/storage tank
- Enables to set high and low level alarms
- Enables a text message alert to be sent directly to any mobile up to 5 contacts
Advantages
- User can monitor pump/motor from anywhere, from any distance via SMS
- GSM Technology, Reliable operation, Worldwide Connectivity
- Low Cost, Quality and less maintenance and robust device
- Message Alerts for Main Power Supply, pump condition, fluid level Status.

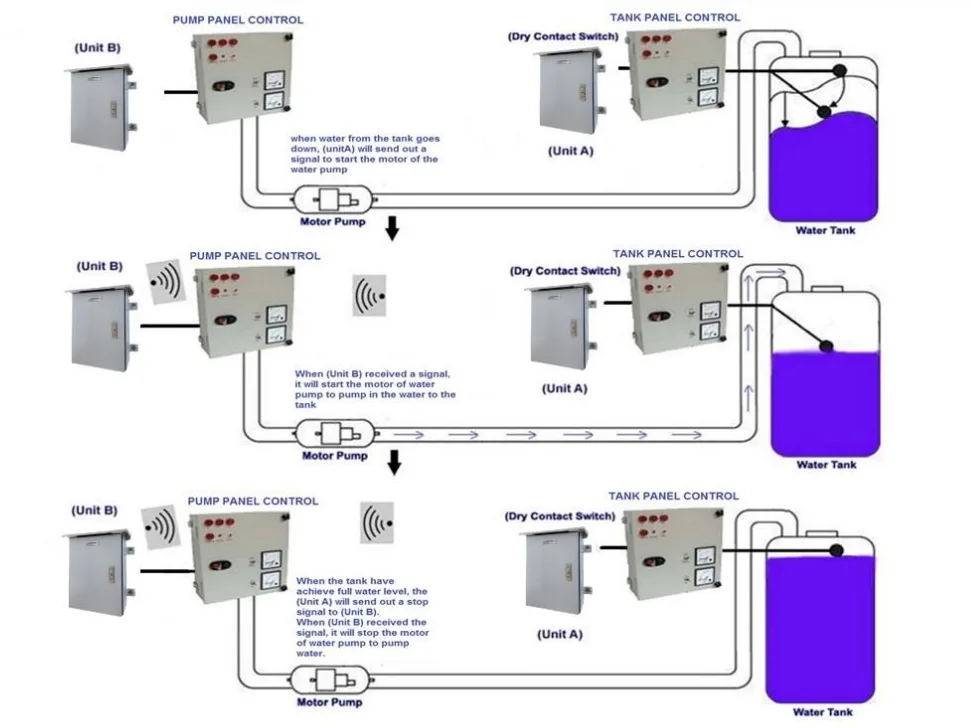

How it works
Application
- Water Tank Level Indicator
- Dry Run Notification
- Booster Pump Control
- Low Level Alarm Notification
- Pump Failure Notification
- Submersible Pump Control
- Reservoir Control
- Pump Monitoring
| Technical details | GSM-220E |
| Operation Voltage | 12VDC |
| Operating Current | Max. 300mA, typically 35mA |
| GSM Frequency | GSM900 / 1800 MHz |
| Operating Temperature | -20ºC to 55ºC |
| Number of Input/output | a) 2 Dry Contact Input |
| b) 2 Relay Output | |
| Relay Contacts Capacity | NC : 1A @ 24VDC |
| NO : 2A @ 120VAC / 24VDC | |
| Remote Monitoring System | GSM Network Coverage Area |
| Module Dimension | 88mm x 72mm x 59mm |
| Humidity | Less than 80% RH |
